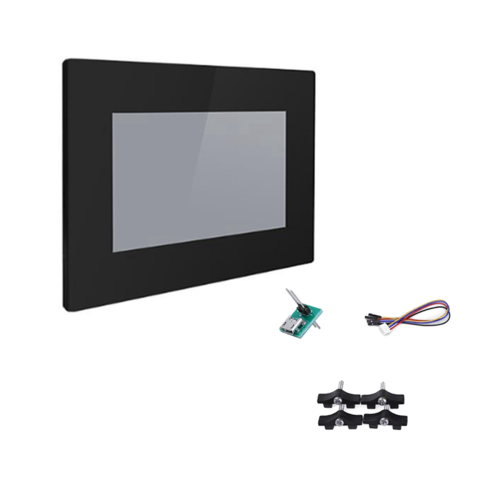

Smart Screen NX8048P070-011C-Y 7 Inch Capacitive Touch Screen with Housing HMI TFT LCD Module Display

Smart Screen NX8048P070-011C-Y 7 Inch Capacitive Touch Screen with Housing HMI TFT LCD Module Display Description1.
Smart
P
Series:
NX8048P070-011C-Y
is
a
replacement
for
Enhanced
K
Series:
NX8048K070-011C2.
Advantages
of
this
screen
over
enhanced
K
series
screens:
More
powerful
hardware
in
terms
of
MCU,
flash
memory
and
SRAM3.
Ability
to
play
audio,
video
and
animation4.
Support
more
advanced
software
features
and
functions,
such
as
transparent
components,
loading
effects,
drag
and
drop
functions,
etc.5.
Compared
to
the
basic
T-series
screen,
this
also
has:
Built-in
Data
can
be
saved
on
flash
memory
GPIO
pins
(2
PWM
functions)
Larger
flash
memoryfeature:Compatible
with
for
A+,
B+,
Pi
2,
Pi
3,
forRGB
65K
Vivid
Color
Capacitive
TFT
Touch
ScreenProduct
Description:128MB
Flash
for
user
application
code
and
dataEEPROM:
1024
bytesMemory:
512KBInstruction
buffer:
1024
bytesInterface:
XH2.54
4-pin
TTL
serial
interfaceInput
voltage:
4.7
-
7
V
(5
V
standard)Input
current:
750mA
(maximum
brightness),
170mA
(sleep
mode).
Recommended
power
supply:
5V
min
1ASpeaker:
rated
capacity
0.5
watts,
impedance
16?Screen
size:
7.0
inchesScreen
resolution:
800x480
pixelsScreen
brightness:
300
cd/m^2,
(0~300
nit,
adjustment
interval
1%)Backlight
life
(average):
Greater
than30,
000
hoursOnboard
micro-SD
card
slot
for
program
upgrade,
FAT32.
Fits
up
to
32GB
SD
cardMicro-USB
power
plugVisual
area:
154.08mm
(length)
x
85.92mm
(width)Housing
around
the
screen
for
easy
assemblyIncludes
installation
materialsize:
21
x
15
x
2cmMaterial:
ABScolour:
blackPackage
Contents:1
x
NX8048P070-011C-Y
HMI
Display1
x
XH2.54
4P
Wire1
Supply
Test
Board4
x
Mounting
buckle
&
screwOnly
the
above
package
content,
other
products
are
not
included.Note:
Light
reflection
and
different
displays
may
cause
the
color
of
the
item
in
the
a
little
different
from
the
real
thing.
The
measurement
allowed
error
is
+/-
1-3cm.
